| Model : | MC-H12F | ||
| Main control chip: | Mstar SSC338G | ||
| Image sensor : | OS12D40 12MP, 1/2.49; | ||
| Video processing: | H.265+/H.265/H.264 video encoding, support bit rate | ||
| 0.1M~12Mbps adjustable; support frame rate 1~30 | |||
| frames/second adjustable; | |||
| Image Output: | Main stream: 15@FPS (3840X3104) 20@ (3840×2160) | ||
| 25@fps (3072×2048, 2592×1944, 2560×1440, 2304× 1296, | |||
| 1920×1080,1280×720) | |||
| Sub-stream: 720×480, D1, VGA, 640×360 | |||
| Audio processing : | G.711 coding standard, supports two-way voice intercom, | ||
| supports audio and video synchronization; | |||
| IRCUT interface: | integrates IRCUT switching circuit, automatic/external control | ||
| /manual/timing to control IRCUT day and night mode | |||
| Network interface: | 1 RJ45 Ethernet interface, 10/100M adaptive; | ||
| Light board interface: |
CDS, PWM infrared, PWM warm light | ||
| Audio input: | 1 audio linear input (MIC); | ||
| Audio output : | 1 channel output, 1 channel output; | ||
| The IO interface | supports electric zoom and auto focus interfaces, which | ||
| require zoom lenses, zoom control panels, and zoom programs | |||
| Reliable: | power supply and network comprehensive lightning | ||
| protection, in line with national standard | |||
| GB/T17626.5 and international standard IEC61000-4-5; | |||
| Business functions: | support OSD, real-time audio and video transmission, | ||
| perimeter algorithm detection, dual light source alarm, and | |||
| sound alarm | |||
| network protocols: | HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network | ||
| protocols, and GB28181, RTMP and various NVR docking protocols are optional; | |||
| protocols are optional; | |||
| Mobile monitoring | Support mobile monitoring (iOS, Android) APP: VideoLink | ||
| Power supply : | DC12V | ||
| Size : | 2*38(length) * 38(width) | ||
| Working environment: |
-40–85 | ||

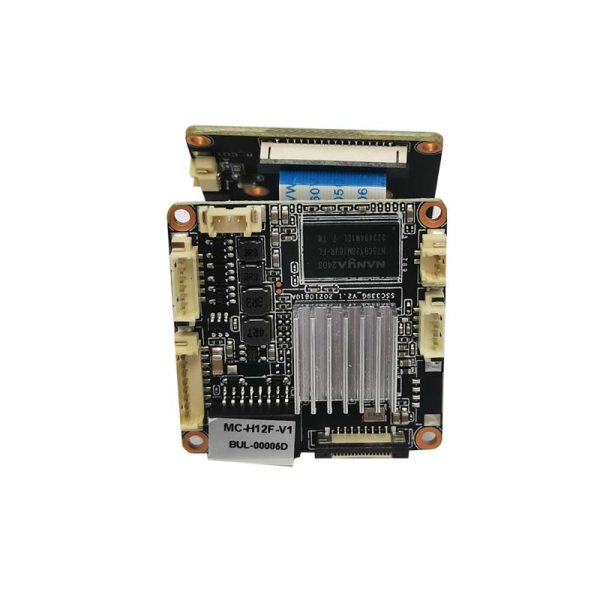

MC-H12F 12MP smart AI StarLight Module

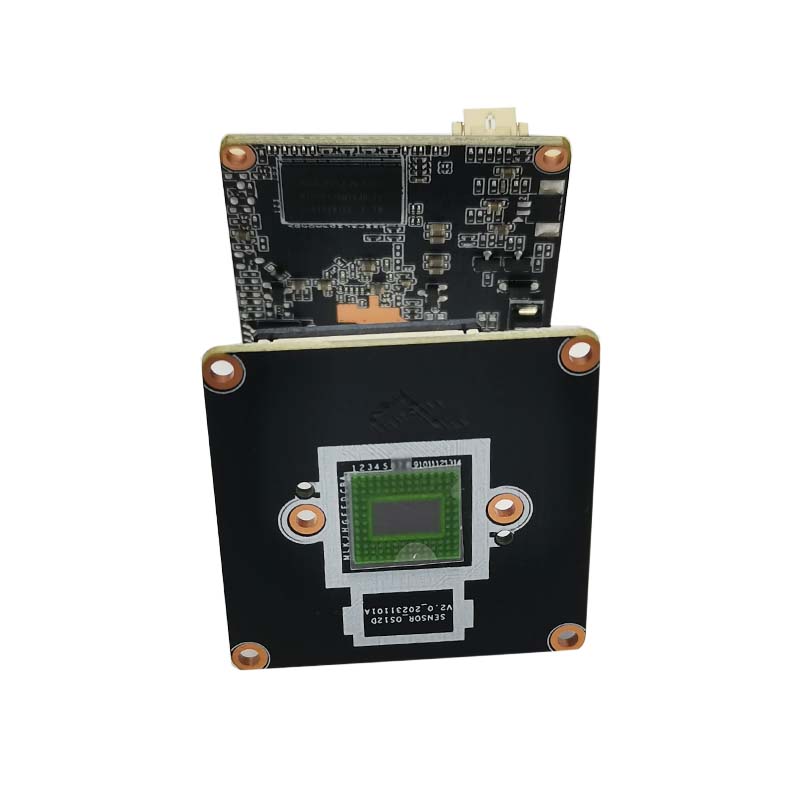

1. Mstar SSC338G+OS12D40 1/2.49 inch 12 million pixel CMOS sensor;
2. Support H.265+, H.265, H.264 encoding,Onvif;
3. Support 2 types of light signal control: CDS, PWM signal;
4. Support soft photosensitivity: full color mode, infrared mode, dual light mode;
5. Support image flip;
6. Support voice intercom, voice broadcast, custom voice;
7. Support character overlay;
8. IP address filtering;
9. Support POE expansion;
10. Provide SDK (WINDOWS, Android, Linux) development package
