MC-A85 – 8MP AI IP Camera Module SigmaStar SSC378DE + GalaxyCore GC8613

Home  /  No Categories

1. SSC378DE+GC8613 1/2.7 inch 8-megapixel blacklight CMOS sensor;
2. Support H.265+, H.265, H.264 encoding; Onvif;
3. Support 2 types of light signal control: CDS, PWM signal;
4. Support soft photosensitivity: infrared mode, dual light mode, full color mode;
5. Support image flip;
6. Support intelligent analysis: human detection, vehicle detection, custom area, trip wire detection;
7. Support voice intercom, voice broadcast, custom voice;
8. Support character overlay;
9. IP address filtering;
10. Support POE expansion;
11. Privacy shielding, 1-way IO alarm input and output

Contact Us
General
Model MC-A85
Main Control Chip SSC378DE
Image Sensor GC8613, 8MP, 1/2.7″ CMOS (blacklight)
Video
Video Encoding H.265+ / H.265 / H.264
Bitrate 0.1 – 12 Mbps (adjustable)
Frame Rate Resolution-dependent; see Main Stream below.
Main Stream 20 fps @ 3840×2160; 25 fps @ 3072×2048; 30 fps @ 2592×1944, 2560×1440, 2304×1296, 1920×1080, 1280×720
Sub Stream 720×480, D1, VGA, 640×360
Lighting
Light Mode Dual-light: Full-color (warm) + Infrared; Full-color only; Infrared only
IRCUT Integrated circuit; auto / external / manual / timer control
Light Interface CDS, PWM infrared, PWM warm light
Audio
Audio Codec G.711
Audio Interface 1-ch linear input + 1-ch linear output + SPK (8Ω, 2W)
Two-way Audio Supported (voice intercom, voice broadcast, custom voice)
Smart Features
Intelligent Analysis Human detection, vehicle detection, custom area, tripwire detection
Alarm Dual light source alarm, sound alarm, 1-way IO alarm in/out
IO Interface Motorized zoom / autofocus interface; requires compatible lens, control board and firmware
Network
Network Interface 1 × RJ45, 10/100M self-adaptive Ethernet
Protocols HTTP, RTSP, DHCP, NTP, ONVIF, P2P; optional GB28181, RTMP
Mobile APP VideoLink (iOS & Android)
SDK Windows, Android, Linux
Power & Environment
Power Supply DC 12V
Working Temperature -40°C to +85°C
Lightning Protection GB/T17626.5, IEC61000-4-5
Dimensions 42 mm × 42 mm
Other Supports POE expansion
Image Processing Image flip

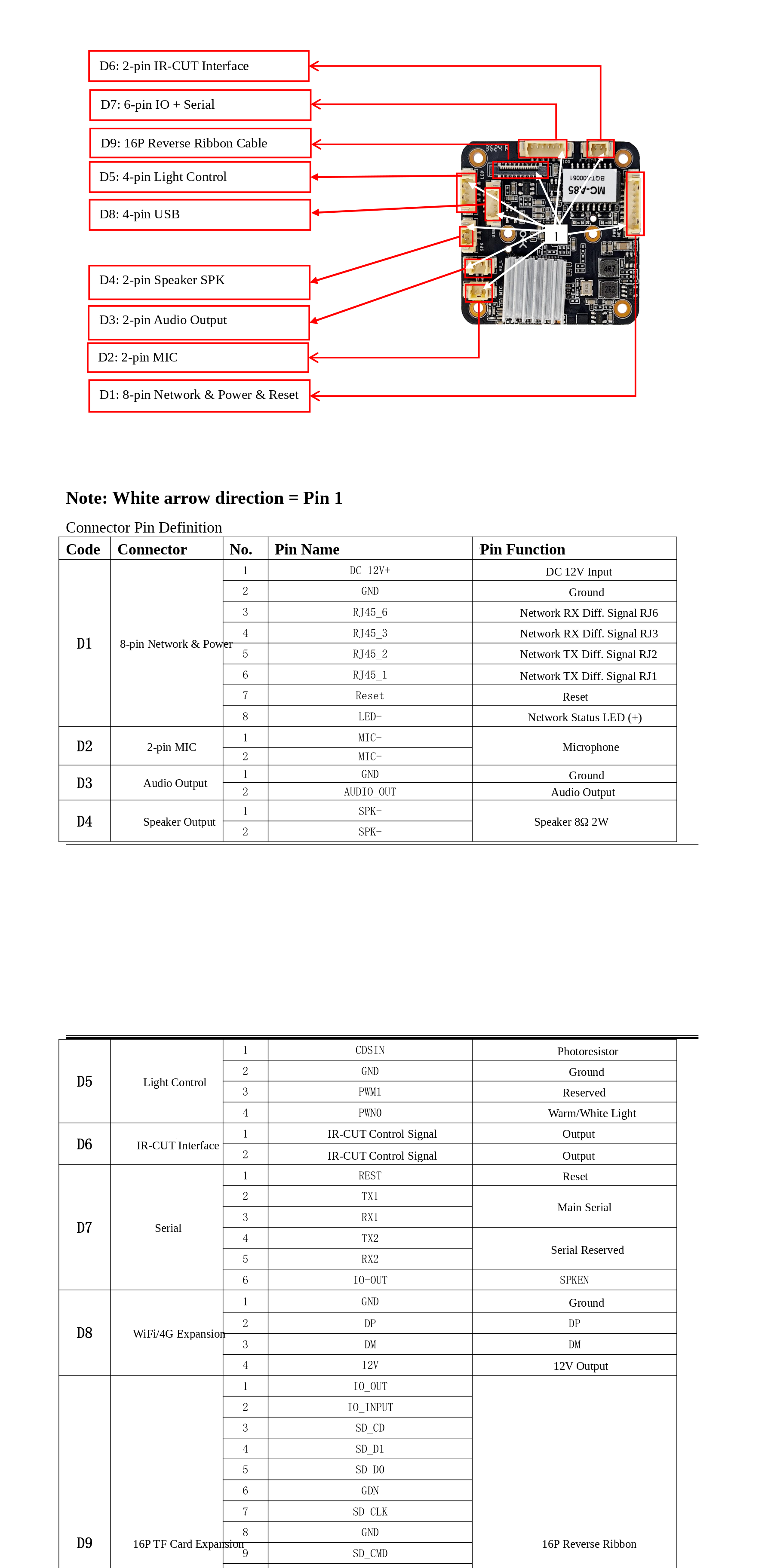

Wiring Diagram

Vedio Demo

Downloads

 Specification

Wiring Definition

Firmware

Manual
